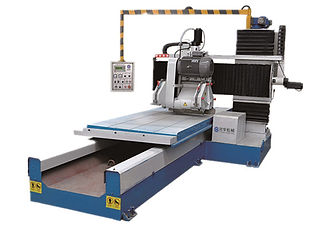

stone profiling machine XTJ-1200-1300-1500
Product Type XTJ-1200 XTJ-1300 XTJ-1500
Blade Diameter 300-600MM 300-600MM 300-600MM
Workbench Dimensions(L×W×H) 3000×1200(mm) 3000×1300(mm) 3500×1500(mm)
Processing range of cutting tool 3000×1200*400(mm) 3000×1300*400(mm) 3500×1500*400(mm)
Working benchroating degree 0°-90°+45°/ 0°-45°-90°-360°
Water consumption 3.6m³/h 3.6m³/h 3.6m³/h
Main Motor Power 15kw 15kw 15kw
Gross power 18.5kw 18.5kw 18.5kw
Overall Dimension 4900×2200×2350(mm) 4900×2300×2350(mm) 5900×2500×2500(mm)
Voltage 380v/50hz/3phase 380v/50hz/3phase 380v/50hz/3phase
Weight 4000kg 4500kg 5000kg
Line Continuous Production GH-200
The number of shape grinding wheel 4pcs or 8pcs
Shaping grinding wheel diameter 200mm
working width 30-200mm
Processing thickness 15-80mm
The polishing speed 0.4-1.5m/min
Water consumption 200L/min
Total power 80kw
Mchine weight 8000kg
Total dimension 4200（5700）*1600*1900mm
Weight: 310kg
Extra Weight: 1*35kg
